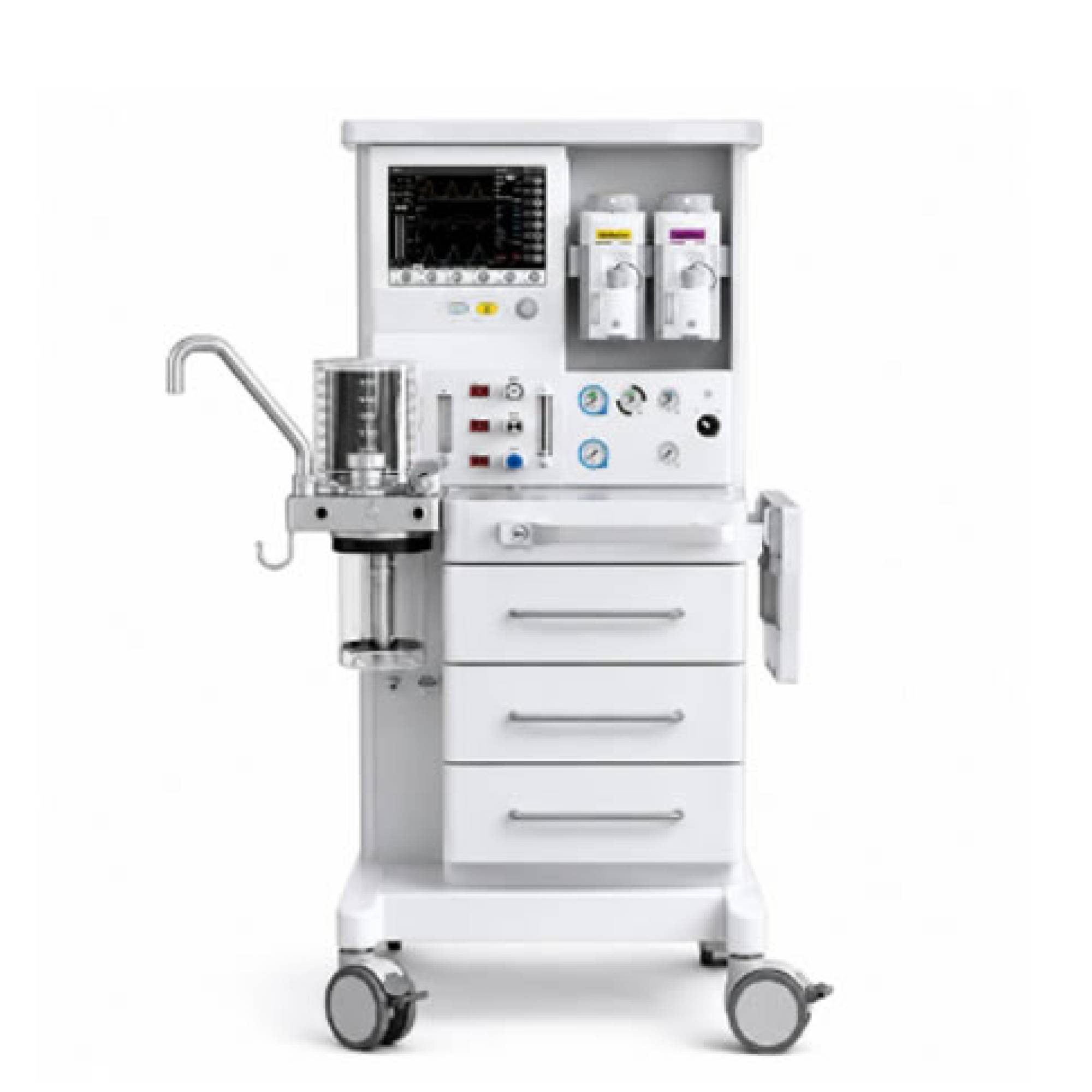

Aeonmed 8800 anaesthesia machine

The Aeonmed Aeon8800A is an advanced anaesthesia workstation designed for modern operating rooms. It combines an integrated anaesthesia ventilator, precise gas delivery system and comprehensive respiratory monitoring in a single workstation. The system is suitable for a wide range of surgical procedures and supports flexible ventilation for different patient requirements.

Key Features
• Large color TFT display for clear visualization of patient and ventilation parameters.
• Integrated high-performance anaesthesia ventilator.
• Suitable for adult and paediatric patients.
• Multiple ventilation modes for flexible clinical use.
• Supports low-flow anaesthesia to help reduce anaesthetic gas consumption.
• Precise fresh gas flow control.
• Integrated alarm and safety monitoring system.
• Compact and ergonomic workstation design.
• Easy-to-use interface for clinical staff.
• Compatible with standard anaesthetic vaporizers.
• Integrated breathing system designed for efficient anaesthesia delivery.
• Comprehensive respiratory monitoring.
• Built-in battery backup for continued operation during power interruptions.

Technical Specifications
• Model: Aeonmed Aeon8800A
• Display: Color TFT LCD display
• User Interface: Graphical interface with control knob
• Alarm System: Visual and audible alarms
• Patient Types: Adult and paediatric patients
• Dimensions: 1403 × 704 × 750 mm
• Weight: Approximately 110 kg
• Power Supply: 100–240 VAC, 50/60 Hz
• Battery: 24V, 4.0Ah, with approximately 120 minutes of backup operation
• Gas Supply: Oxygen (O₂), Nitrous Oxide (N₂O) and Medical Air
• Gas Control: Mechanical flowmeters with oxygen flush and pressure safety monitoring
• Vaporizer Compatibility: Isoflurane, Sevoflurane, Halothane and Enflurane
• Vaporizer Mounting: Selectatec compatible

Ventilation Modes
• Manual / Spontaneous Ventilation
• Volume Control Ventilation (VCV)
• Pressure Control Ventilation (PCV)
• Pressure Support Ventilation (PSV)
• Adjustable Ventilation Parameters
• Tidal Volume: 20–1500 mL
• Respiratory Rate: 2–100 breaths/min
• PEEP: 0–30 cmH₂O
• Inspiratory Pressure: Up to 70 cmH₂O

Monitoring Parameters
• The Aeon8800A can monitor a range of respiratory parameters, including:
• Tidal volume
• Respiratory rate
• Minute ventilation
• Airway pressure
• Oxygen concentration
• PEEP
• Peak airway pressure
• Waveforms
• Pressure-time waveform
• Flow-time waveform
• Volume loops
